| Product Name | UV LED Module 6188 |
| Power | 700W |
| Color | UV |
| Number of lamp beads | 70 pcs |
| Diode type | 6565 smd |
| Lens Material of Diode | Silica gel or quartz |
| View Angle of the Lens | 30, 60, 120degree |

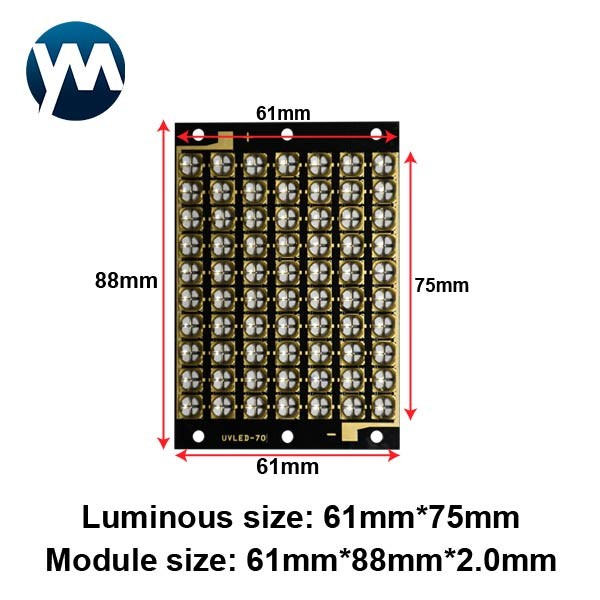

| Module size | 61mm*88mm*2.0mm |
| Luminous Size | 61mm*71.5mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 45.5-52.5V |
| Current | 10-15A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 20000-30000 |
| Warranty | 2 years |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
Why Choose Us
1) Quality Control
Our manufacturing team is based of highly skilled professional which check quality of every product before shipping.
2) Customization options
We provide customized products according to your needs.
3) Post-sales customer support
We provide trainned customer service personal for our customers to solve all your problems.
FAQ
Q1. Can the intensity of ultraviolet light be adjusted?
A. Yes, the intensity can be adjusted between 0-100%.
We have designed different dimming systems for different products.
Q2. What is the service life of UV LEDs?
A. The life of the LED chip is 20,000 hours. If you pay attention to maintenance during use, it can generally be used for 2-3 years.
Q3. What can Yuanming provide?
A. Our products cover a wide range. We can provide you with high-power LED arrays (1-100W), COB LEDs, LED modules,
LED lamps, high-power curing UV LEDs and all UV LED application solutions.
Q4. How can I place an order?
A. 1. Provide us your requirements.
2. Our company will draft an quotation and provide you with our best suggestions.
3. Our company will issue an invoice and you will confirm the invoice.
4.Make the payment after confirming the Invoice.
5.The goods will be shipped as soon as possible after payment.
Q5. Are the pictures real?
A. All the pictures were taken by our company and all of the pictures are real.
Q6. What's the wavelength of the UV Curing LED Lamp?
A. The wavelength of UV LED Lamp usually are 365-405nm, the wavelength for inkjet printer is 395nm,
385/395nm for printing machine, 365nm for UV glue.
Q7. What's the brand of LED chip you use?
A. The LED chip brand we use are LG, Epileds, Seoul.
Q8. What's the materials of the lamp and lens ?
A. The materials of lamp is Aluminum, and the lens are quartz.
Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Please make sure that the electricity parameters such as voltage and current does not exceed the rated clectricity parameters of the products.
If you have other needs, please contact us to provide you with the best solution.
Thank you for your attention.
